Large Scale Maize Grits and Flour Milling Line

This equipment can produce refined corn flour (delicate, pure, fineness of 120 mesh),a variety of corn particles (grits). maize germ, maize husk, etc.

1. Cleaning part: one screening, one stone removing, one magnetic separation. Equipped with winnowing system, it can remove the big and small impurities, such as, dust, stone, magnetic material, rotten corn and so on. This part consists of beating, screening, de-stoner,magnetic separator and dampening. This section is to prepare for milling part and to protect the machinery as well.

2. Peeling and degerming section: it adopts the process of twice peeling, once polishing, twice screening and once fine section.

   1.) Twice peeling, once polishing can ensure effective peeling and germ removing, and separates the flour and bran by air suction system.

   2.) Screening: it separates the material according to sizes and quality.

   3.) Fine selection: according to different gravity, it separates the bran and broken germs from the material by the joint action of cowl flap and airflow.

3.Corn grits section: it adopts the technology of fine grits making, flour brushing, screening classifying and suspending.

   1.) Corn fine grits：it smashes the material into grits and grinds the albumen with small hardness into fine powder.

   2.) Flour brushing：it separates the white flour from the material.

   3.) Screening：it classifies the material according to sizes.

   4.) Suspension: it separates the small bran from the grits by airflow according to different gravity.

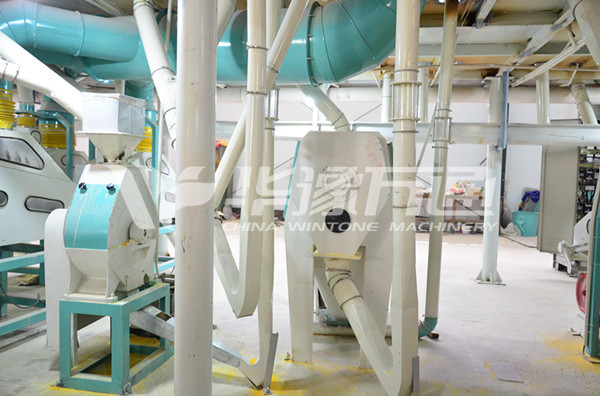

4.Flour milling section：it adopts the technology of several times of grinding and screening.

   1.) Grinding: the material enters into the grinder and is ground into fine flour.

   2.) Screening: it separate the fine powder from the material.

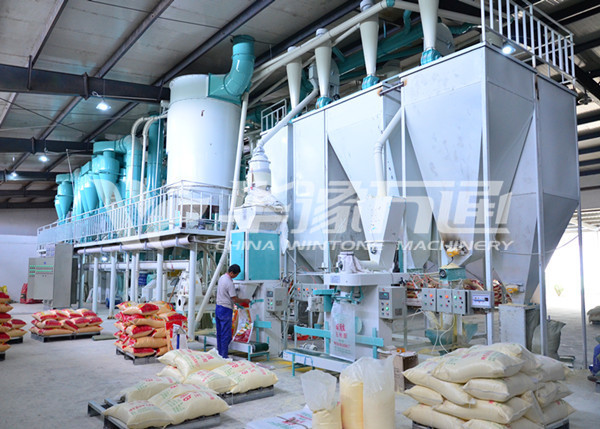

5.Packaging part:

It can pack the end product(maize grits and  flour) automatically and quantitatively, which can save labor a lot.

Features of large scale corn grits and flour milling line :

1, Fully automatic processing line.

2, Made of durable stainless steel.

3, High quality & rich type of final products.

4, Advanced technology & reasonably designed structure.

5, Systematic process  with less time & high efficiency.

6, Small investment, energy saving and environmentally friendly.
