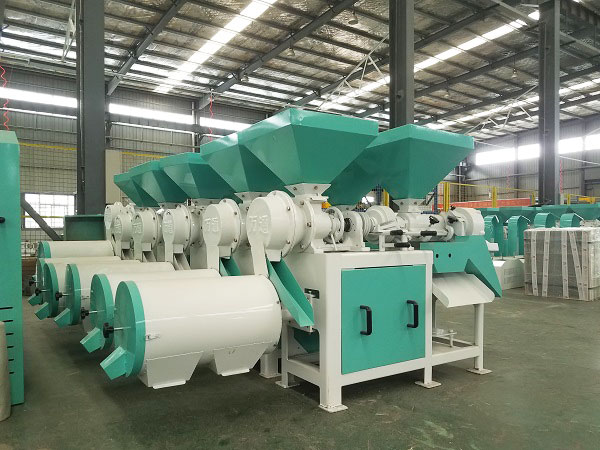

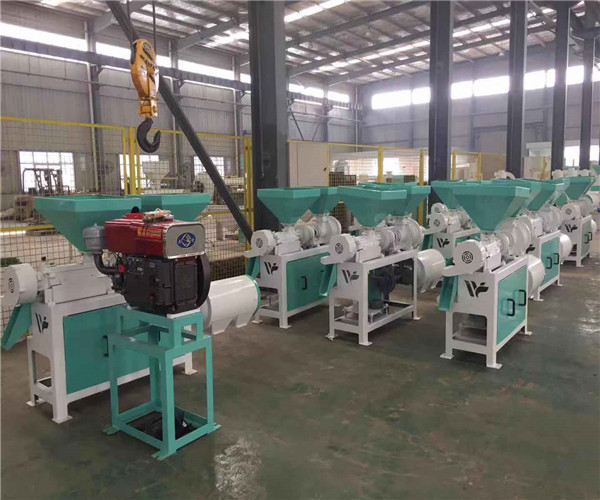

DNM-3B Multifunctional efficient corn kernel, grits and flour Machine:
1.Corn peeling, grits and flour milling, wheat peeling and flour milling, paddy peeling and polishing, sorghum peeling and flour milling.
2.Suitable for small size of food processing factories in corn, wheat and sorghum peeling, grits and flour milling.

DNM-3B Electric maize corn grits and flour machine mainly has two functions: corn peeling and corn grits and flour making.
Motor: 7.5KW, 380V.
Processing capacity: 300kg/hour

Working principle: This machine consists of corn peeling, corn polishing, corn grits and flour making, end products classifying and winnowing. The clean raw grain is conveyed to the feeding port for peeling, degermination and black impurities removing and can be processed into corn kernels once. After smashing and mixture grading, the machine can produce three end products: medium grits, small grits and corn flour. Inside of the machine has highly efficient air draft chamber for collecting the corn skin from peeling process. Kernel size can be adjusted by grits making bolt. Grits granularity can be controlled by adjusting the diameter between the two fluted discs.

Features:
It is internally installed efficient winnowing and dust removal blower, which can collect the skin and impurities from the kernel through the blower air channel.
High yield, good effect
The discharging port of the peeling chamber can accurately control corn or wheat staying time in the peeling chamber by pressure valve. Ensure the effective friction with alloy roller so as to realize better peeling effect.
Low energy consumption, wide usage.
Assembled with peeling and grits and flour milling functions, the machine unit adopts 7.5KW motor as the power equipment to reduce input cost. It can be applied in corn, wheat and sorghum peeling, kernel and flour making.
Spare parts: grinding core, roller, peeling blade, peeling sieve, triangular belt, hairbrush and so on.
