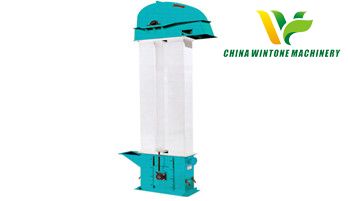

TDTG series of bucket elevator:

Bucket elevator features:
1. High quality steel plate;
2. The Bucket Elevator uses advanced equipment to bent and weld;
3. No dust leakage thanks to good sealing performance;
4. Good wear resistance thanks to high molecular polyethylene bucket;
5. Uses high-intensity bucket flat belt, low elongation;
6. High-strength bolted joint.

1. Discharging hoper
2. Big belt wheel
3. Triangular belt
4. Motor belt wheel
5. Motor
6. Return pipe
7. Hopper belt
8. Outlet
9. Materials hopper
10. Adjustment lever damper
11. Materials inlet
12. Adjustable screw
13. Materials bin
Materials enter the bin through the inlet and are elevated to discharger by the hopper in the conveyor;then jump and fall into outlet by centrifugal force and gravity.

Functional description of bucket elevator:
The bucket elevator is ideal for use as a distributing elevator.
Floury products as well as bulk materials such as grain and flours can be handled in vertical or upward inclined more than 70 degree direction.

The bucket elevator features compact structure, stable operation, low noise, high efficiency, and convenient operation and maintenance.

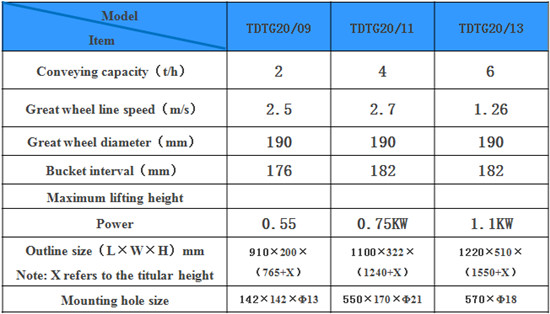

Technical parameter of bucket elevator:
