型     號 Model

主軸

轉速spindle speed

（r/min）

產量 yield

（t/h）

動力 power

（kW）

外形尺寸

(長*寬*高)
size(L*W*H)

(mm)

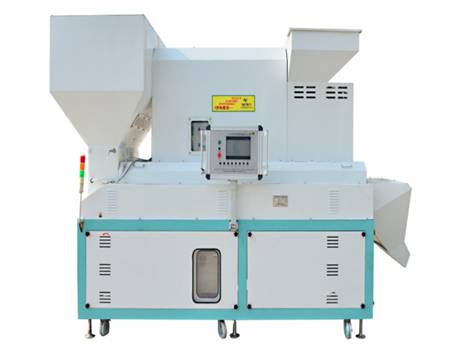

CMJZ-100×10

400-850

12-25噸

39

4500*1660*2900

谷物類別

Cereal category

原料類型

Raw material type

原糧等級

Grain grade

加工等級

Processing level

產量

output

除霉率

Removal mould rate

滅菌率

Sterilization rate

增碎率

Broken adding rate

玉米 Corn

滅菌除浮霉

Sterilization except for floating mold

等外級

Substandard

等級內

Within level

12-25T/h

90%

97%

1%

小麥 Wheat

滅菌除浮霉

Sterilization except for floating mold

等外級

Substandard

等級內

Within level

12-25T/h

95%

97%

1.2%

雜糧雜豆grains&beans

滅菌刷光

Sterilization &brushing

等外級

Substandard

等級內

Within level

12-25T/h

95%

97%

0.8%

樣品 sample

說明 description

濃度 concentration μg/kg

備注 remarks

原糧 raw grain

霉變玉米 mildew corn

1.60

霉變玉米 mildew corn

1.60

滅菌除霉一遍取樣

once sampling after sterilization and mildew removing

未檢出 not detected

滅菌除霉一遍取樣
once sampling after sterilization and mildew removing

未檢出 not detected

II

滅菌除霉二遍取樣
twice sampling after sterilization and mildew removing

未檢出 not detected

滅菌除霉二遍取樣
twice sampling after sterilization and mildew removing

未檢出 not detected

環境 environ-ment

周圍環境溫度 surrounding temperature

室外 outdoor -35℃--45℃

周圍環境相對濕度 surrounding relative humidity

90%RH以下（不結露）
90%RH below (without moisture condensation)

放置儲存溫度
storage temperature

室外 outdoor -35℃--45℃

環境 environment

室內或室外（無腐蝕氣體、可燃氣體、油霧等）
indoor or outdoor (without corrosive gas, flammable gas, or oil mist)

海拔高度 altitude

任何高度 any height

谷物浮霉除霉揉搓

grain floating mildew removing and kneading

谷物凍結加溫系統

Grain frozen heating system

環流臭氧滅菌

Circulation ozone sterilization

臭氧分解環保系統

Ozonolysis environmental protection system

1.進料控制 feeding control

2.揉搓控制 kneading control

3.塵雜收集結構

dust collection structure

4.揉搓壓力調節 kneading pressure adjustment

5.出料控制

discharging control

1.流量控制結構 flow control structure

2.防破碎加溫輸送

breakage prevention and heating conveying

3.自動溫控結構

automatic temperature control structure

1.臭氧發生器

 ozonator

2.臭氧流量控制

Ozone flow control

3.臭氧滅菌倉

Ozone sterilization bin

4.臭氧環流分配器

Ozone circulation distributor

1.紫外線分解

 ultraviolet ray decomposition

Negative pressure attenuation discharging

負壓除塵系統

negative pressure dedusting system

PLC自動化控制系統

PLC automatic control system

設備人性化設計

Humanization design

浮霉輕重及滅菌程度調節功能

Adjustment function for floating mildew condition and sterilization degree

1.高壓風機 high pressure blower

2.螺旋除塵器 spiral dust remover

3.關風器 air seal machinery

4.收集器 accumulator

1.變頻調控 frequency conversion adjustment

2.智能溫控 intelligent temperature control

3.過程控制 process control

4.手自一體控制manual and automatic integration control

5.料位報警系統 material level alarm system

6.集成觸摸屏 integration touch screen

7.臭氧滅菌控制 ozone sterilization control

8.運營數據實時監控real time monitoring for operation data

1.夜市照明監控 illumination monitoring

2.可移動、可固定 removable and mountable

3.使用方便靈活 flexible operation

4.流量控制可視化flow control visualization

1.揉搓系統變頻調整

frequency conversion adjustment for kneading system

2.揉搓壓力調整

Kneading pressure adjustment

3.臭氧濃度控制

Ozone concentration control
