Function and Features Introduction:

Our 20Ton/Day corn milling plant design includes screening, stone removing, peeling, polishing, milling, brushing, pneumatic transportation, electric control and products packing. This is a small scale of maize milling line and can ensure maize flour yield and quality with low energy consumption and investment.

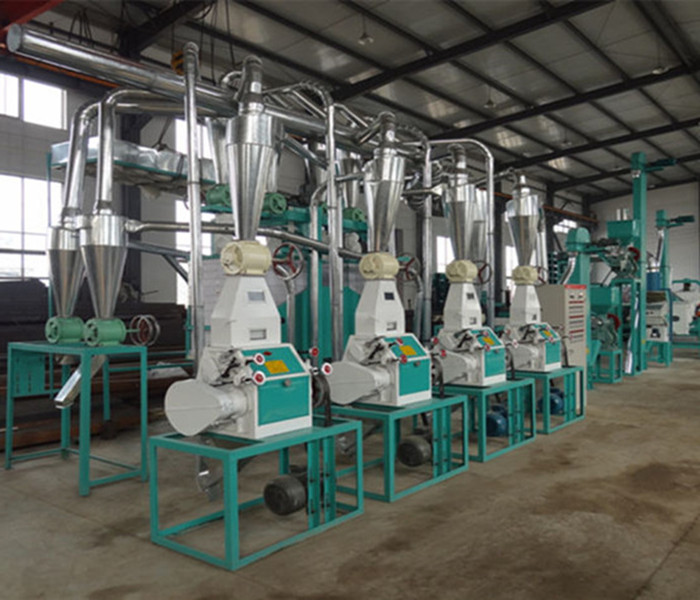

Main Equipments of 20Ton/day Corn Milling Plant It has a maize cleaner, moisture dampener, 1 degerminator, 4 roller mills, 2 double sifters, an auto packing system and all the connecting pipes are stainless steel.

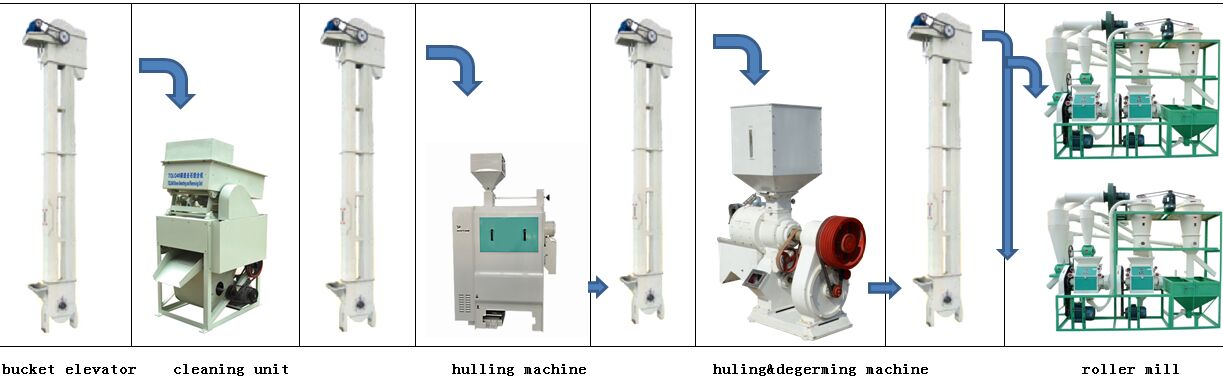

20T/Day corn milling plant working process:

1. Maize Cleaning unit: To clean sand,stone,and other impurities from raw corn.

2. Maize peeling machine: This machine is designed for maize hulling，the emery rollers can remove bran without adding water into maize.

3. Maize degerming machine: this machine is a special equipment which is mainly applied for corn hulling, de-germinating and polishing

4. Maize milling machine:  Lower energy consumption and high efficiency low cost. Designed to provide top safety and sanitation. Flexible adjustment, easy installment and operation. High degree of automation.

5. Bucket elevator: used for materal transporting. low noise, high efficiency, and convenient operation and maintenance.

6. Magnetic separator: remove metal impurities.

7. Measuring and Packing Machine . It can pack maize flour or grits 5kg/bag.10kg/bag.50kg/bag as you required.

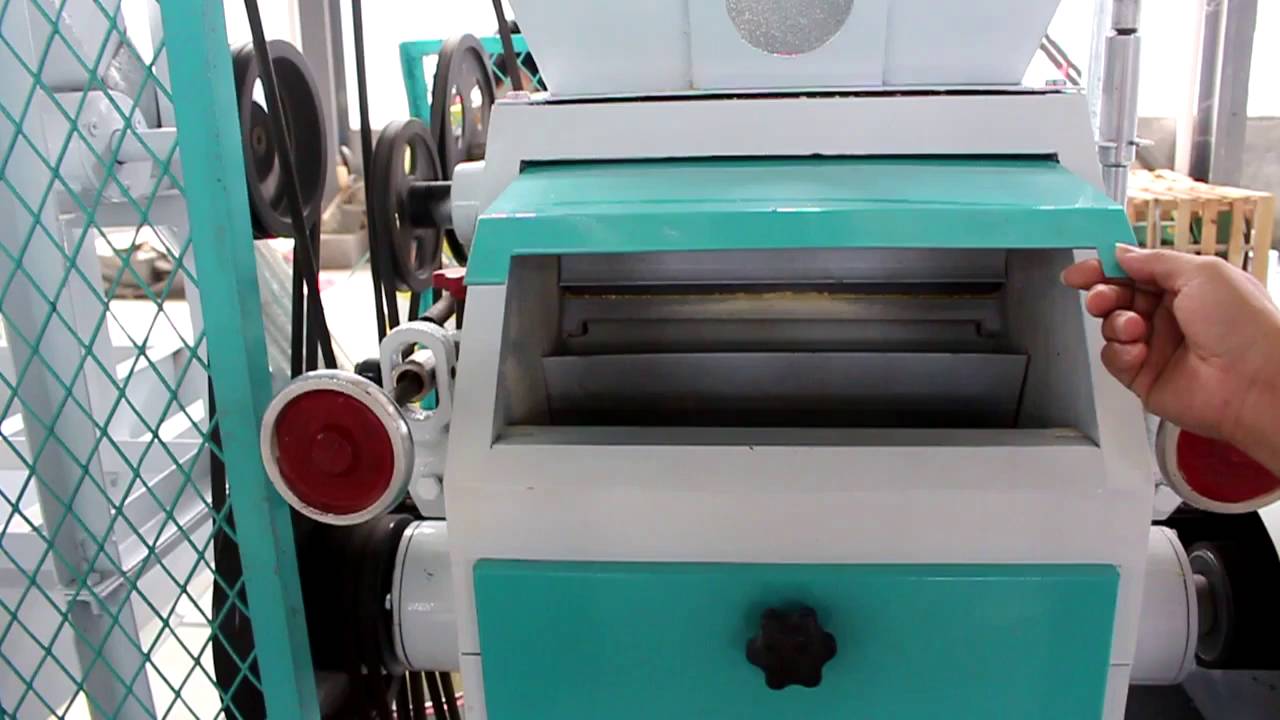

   Corn Roller Mill:







Corn Flour:



20T Corn Milling Plant Maize Mill Plant Technical Parameter:

1. Capacity: processing maize 20T/Day.
2. Raw material: white maize or yellow maize
3. Final products: super white maize meal, maize flour, and grits.
4. By-product: Animal feed.

Processing Capacity	Power	Power Consumption for Tons of Material	Yield	Workshop Size
	KW	KW/HOUR	T/24 HOURS	L×W×H/M
20T	72	58-60	20T	20×5×5（line structure）
				16×5×6（steel structure）
30T	108	58-60	30T	24×5×6（line structure）
				30×5×5（steel structure）
50T	172	56-58	50T	35×5×7（steel structure）
100T	346	56-58	100T	40×7×8（steel structure）



Features of our maize milling lines:
1.Water saving, power saving.
2.Clean and pure final flour.
3.Flour fineness can be adjusted.
4.Low investment!
5.Automatic production process.
6.Free warranty.
7.Field installation and training!
8.7*24 hours after-sales service!

End products index:
1.Corn flour fineness：40-200 meshes (the flour fineness can be adjusted)
2.Sand content：<0.02%
3.Magnetic metal content：< 0.003
4.Moisture storage:13.5-14.5%
5.Fat content:0.5—1%
6.Appearance and taste: bright color, fine powder, high quality and pure taste.

Yellow maize processing:

White maize processing:
